Overview

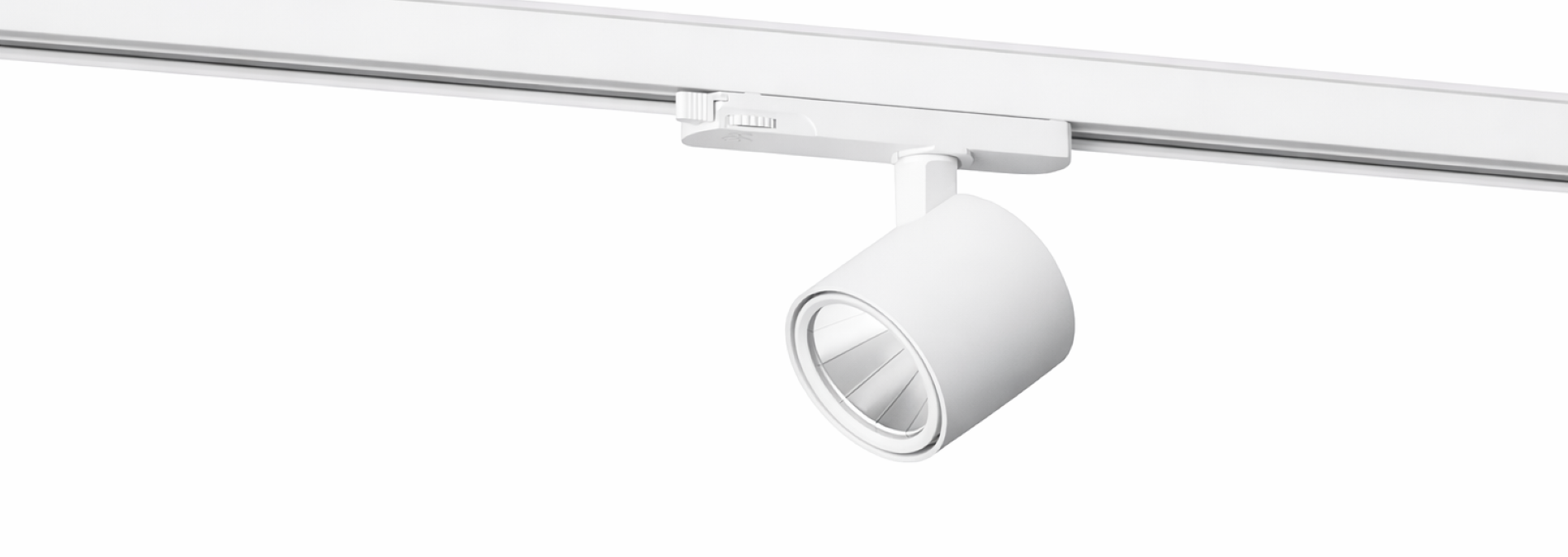

Signature-R is a compact, high efficiency lighting tool for all budgets. With adjustable power and lumen packages, interchangeable optics, and variety of light colors, it is designed to cater all LED lighting needs for retail sector and commercial premises. Great option for customers looking to replace metal halide luminaires for equivalent amount of LED light at significantly reduced demand for electricity.

Crafted with precision and attention to detail, this lighting tool combines versatility with minimalist design. Installation to 3-Circuit tracks and orientation to store merchandise is made easy by 350° rotation and 90° vertical adjustability.



Champion Energy Efficiency

Powered by industry leading HE light source and high reflectivity optics, Signature-R is one of the most efficient lighting tools in the market.



Signature-R Family Datasheet

Family Features

Lumen Classes 1650 - 3550 lm
Power Range 11 - 25W (Dip Switch: 300-650mA)
Light Color Options 927 Efficient Warm
930 Below BBL Efficient White
935 Below BBL Efficient White
940 Efficient Cool
Light Distributions Options Reflector: Narrow 20°, Flood 30°, Wide Flood 40°
Control Types On/Off, Dimmable (DALI, TRIAC, CASAMBI) by Request
Lumen Maintenance L80 B10 > 60kh, L90 B50 > 50kh, Ta 25°C
Colors White, Black
Weight 450g
Installation 3-Circuit Tracks
Certifications CE, UKCA, ENEC pending, IECEE CB pending
Dimensions
