Overview

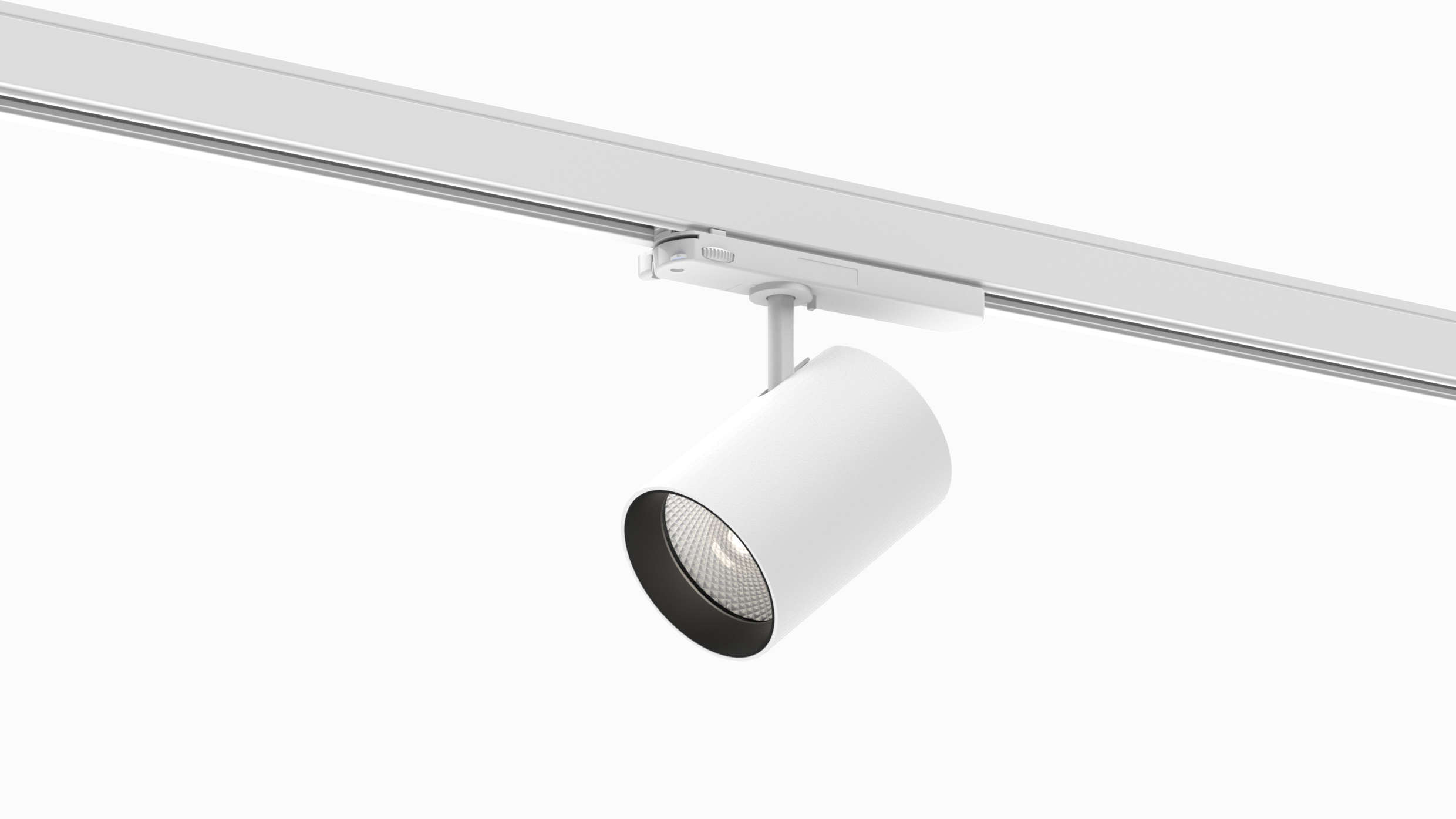

With it’s sleek cylindrical design, this nimble track light merges into it’s environment. Stylish Nimbo is small, and yet powerful lighting tool. Specifically engineered to cater the illumination needs of various retail spaces, Nimbo offers the perfect blend of versatility, flexibility, and efficiency whether you’re looking to highlight your products, create a warm ambiance, or provide task lighting.

Installation to 3-Circuit tracks and orientation to store merchandise is made easy by 355° rotation and 90° vertical adjustability.

Advanced Performance Optics
Advanced light performance lens technology enables high luminous intensity and uniform light distribution without color drift.
Precise optical control with total internal reflectivity are key in creating contrast for different areas in retail store.

Best Balance in Efficacy and Light Color
HE stands for High Efficiency, delivering best-in-class energy efficiency at CRI90+ Below BBL Efficient White light. Check eligibility for energy efficiency subsidy from your local government.

Interchangeable Optics
The optics within and between Nimbo -L and -R are easily interchangeable by twist lock front-ring:

– The “-L” version uses sophisticated TIR lens technology for more concentrated light, delivering uniform light cone without color drift within the beam.
– The “-R” version uses a highly reflective, efficient aluminium reflector.

Nimbo-L HE is available with honeycomb accessory.



Nimbo-L HE Family Datasheet

Family Features

Lumen Classes 2650 - 3650 lm
Power Range 21 - 30W (Dip Switch: 550-750mA)
Light Color Options 930 Below BBL Efficient White
935 Below BBL Efficient White
940 Efficient Cool

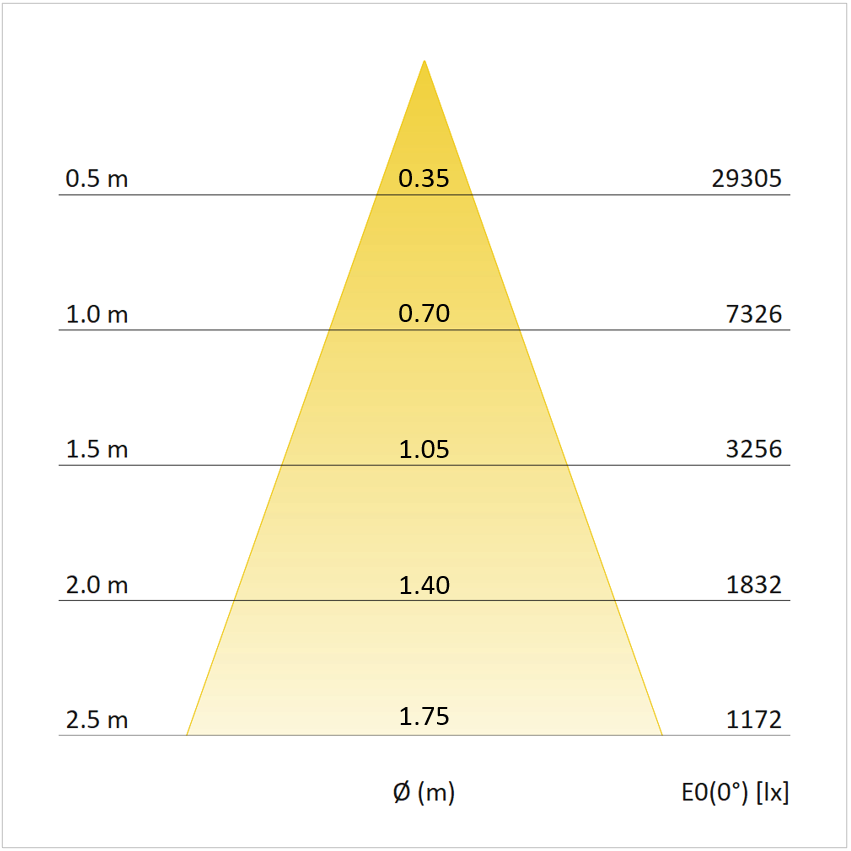

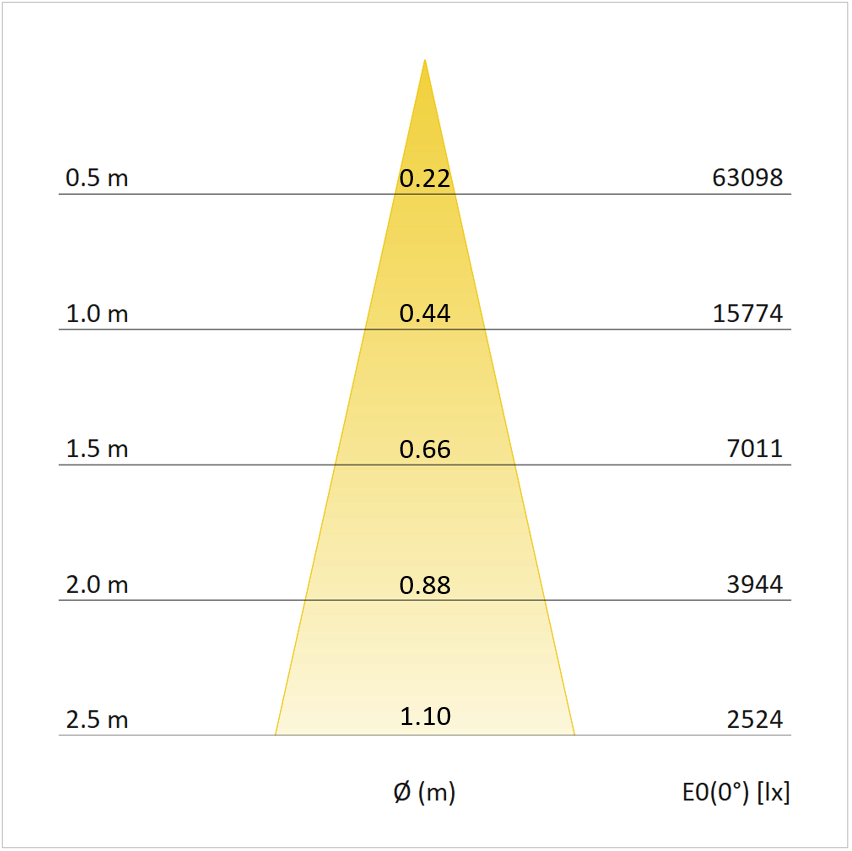

Light Distributions Options Lens: Spot 16°, Narrow 25°, Flood 38°

Reflector: Spot 15°, Narrow 28°, Flood 37°
Control Types On/Off, Dimmable by Request
Lumen Maintenance L80 B10 > 60kh, L90 B50 > 50kh, Ta 25°C
Colors White, Black
Weight 760g
Installation 3-Circuit Tracks
Certifications CE, UKCA, ENEC pending, IECEE CB pending
Dimensions

Codes & Downloads

  • Power (W)

  • CRI

  • Color Temperature

  • Beam Angle

  • Color

Nimbo-L HE 54 code(s)
Useful
Luminous
Flux (Lm)
Total
Power (W)
mA CRI Color
Temperature
(CCT)
Beam Angle Control Color Add to order
List
3650 29.9 750 90 4000K Efficient Cool 25° On/Off Black +
3650 29.9 750 90 4000K Efficient Cool 38° On/Off Black +
3000 23.4 600 90 4000K Efficient Cool 16° On/Off White +
3000 23.4 600 90 4000K Efficient Cool 25° On/Off White +
3000 23.4 600 90 4000K Efficient Cool 38° On/Off White +
3000 23.4 600 90 4000K Efficient Cool 16° On/Off Black +
3000 23.4 600 90 4000K Efficient Cool 25° On/Off Black +
3000 23.4 600 90 4000K Efficient Cool 38° On/Off Black +
2800 21.4 550 90 4000K Efficient Cool 16° On/Off White +
2800 21.4 550 90 4000K Efficient Cool 25° On/Off White +
2750 21.4 550 90 4000K Efficient Cool 38° On/Off White +
2800 21.4 550 90 4000K Efficient Cool 16° On/Off Black +
2800 21.4 550 90 4000K Efficient Cool 25° On/Off Black +
2750 21.4 550 90 4000K Efficient Cool 38° On/Off Black +
3550 29.9 750 90 3500K B.BBL Efficient White 38° On/Off White +
3600 29.9 750 90 3500K B.BBL Efficient White 16° On/Off Black +
3550 29.9 750 90 3500K B.BBL Efficient White 25° On/Off Black +
3550 29.9 750 90 3500K B.BBL Efficient White 38° On/Off Black +
2950 23.4 600 90 3500K B.BBL Efficient White 16° On/Off White +
2900 23.4 600 90 3500K B.BBL Efficient White 25° On/Off White +
2900 23.4 600 90 3500K B.BBL Efficient White 38° On/Off White +
2950 23.4 600 90 3500K B.BBL Efficient White 16° On/Off Black +
2900 23.4 600 90 3500K B.BBL Efficient White 25° On/Off Black +
2900 23.4 600 90 3500K B.BBL Efficient White 38° On/Off Black +
2750 21.4 550 90 3500K B.BBL Efficient White 16° On/Off White +
2700 21.4 550 90 3500K B.BBL Efficient White 25° On/Off White +
2700 21.4 550 90 3500K B.BBL Efficient White 38° On/Off White +
2750 21.4 550 90 3500K B.BBL Efficient White 16° On/Off Black +
2700 21.4 550 90 3500K B.BBL Efficient White 25° On/Off Black +
2700 21.4 550 90 3500K B.BBL Efficient White 38° On/Off Black +
3700 29.9 750 90 4000K Efficient Cool 16° On/Off White +
3650 29.9 750 90 4000K Efficient Cool 25° On/Off White +
3650 29.9 750 90 4000K Efficient Cool 38° On/Off White +
3700 29.9 750 90 4000K Efficient Cool 16° On/Off Black +
3500 29.9 750 90 3000K B.BBL Efficient White 16° On/Off White +
3500 29.9 750 90 3000K B.BBL Efficient White 25° On/Off White +
3450 29.9 750 90 3000K B.BBL Efficient White 38° On/Off White +
3500 29.9 750 90 3000K B.BBL Efficient White 16° On/Off Black +
3500 29.9 750 90 3000K B.BBL Efficient White 25° On/Off Black +
3450 29.9 750 90 3000K B.BBL Efficient White 38° On/Off Black +
2850 23.4 600 90 3000K B.BBL Efficient White 16° On/Off White +
2850 23.4 600 90 3000K B.BBL Efficient White 25° On/Off White +
2850 23.4 600 90 3000K B.BBL Efficient White 38° On/Off White +
2850 23.4 600 90 3000K B.BBL Efficient White 16° On/Off Black +
2850 23.4 600 90 3000K B.BBL Efficient White 25° On/Off Black +
2850 23.4 600 90 3000K B.BBL Efficient White 38° On/Off Black +
2650 21.4 550 90 3000K B.BBL Efficient White 16° On/Off White +
2650 21.4 550 90 3000K B.BBL Efficient White 25° On/Off White +
2650 21.4 550 90 3000K B.BBL Efficient White 38° On/Off White +
2650 21.4 550 90 3000K B.BBL Efficient White 16° On/Off Black +
2650 21.4 550 90 3000K B.BBL Efficient White 25° On/Off Black +
2650 21.4 550 90 3000K B.BBL Efficient White 38° On/Off Black +
3600 29.9 750 90 3500K B.BBL Efficient White 16° On/Off White +
3550 29.9 750 90 3500K B.BBL Efficient White 25° On/Off White +
