Overview

Relay is a modular recessed downlight system with a snap-in installation of the light module into the ceiling frame (single, double or triple), allowing fast and simple installation. For distributors, this enables minimization of stock keeping units while maximizing the versatility of the multi-purpose lighting tool.

Minimalistic yet Powerful
Relay-R Triple HE is small and beautiful, yet it’s sturdy cooling allows a powerful max. light output of up to 5150Lm per light module which swivel up to 30° in any direction, performing both accent and general lighting tasks.

Best-in-Class Energy Efficiency
HE stands for High Efficiency, representing best-in-class energy efficiency at CRI90+ Below BBL Efficient White light. Check eligibility for energy efficiency subsidy from your local government.

Interchangeable Optics
The optics within and between Relay -R and -L are easily interchangeable by twist lock front-ring:

– The “-R” version uses a highly reflective, efficient aluminium reflector.
– The “-L” version uses sophisticated TIR lens technology for more concentrated light, delivering uniform light cone without color drift within the beam.

Relay-R Triple HE is supplied with protective cover glass and is available with honeycomb accessory.



Relay-R HE Series Family Datasheet

Family Features

Lumen Classes 3x 1500 – 5150 lm
Power Range 3x 11 - 42W (Dip Switch: 300-1050mA)
Light Color Options 930 Below BBL Efficient White
935 Below BBL Efficient White
940 Efficient Cool

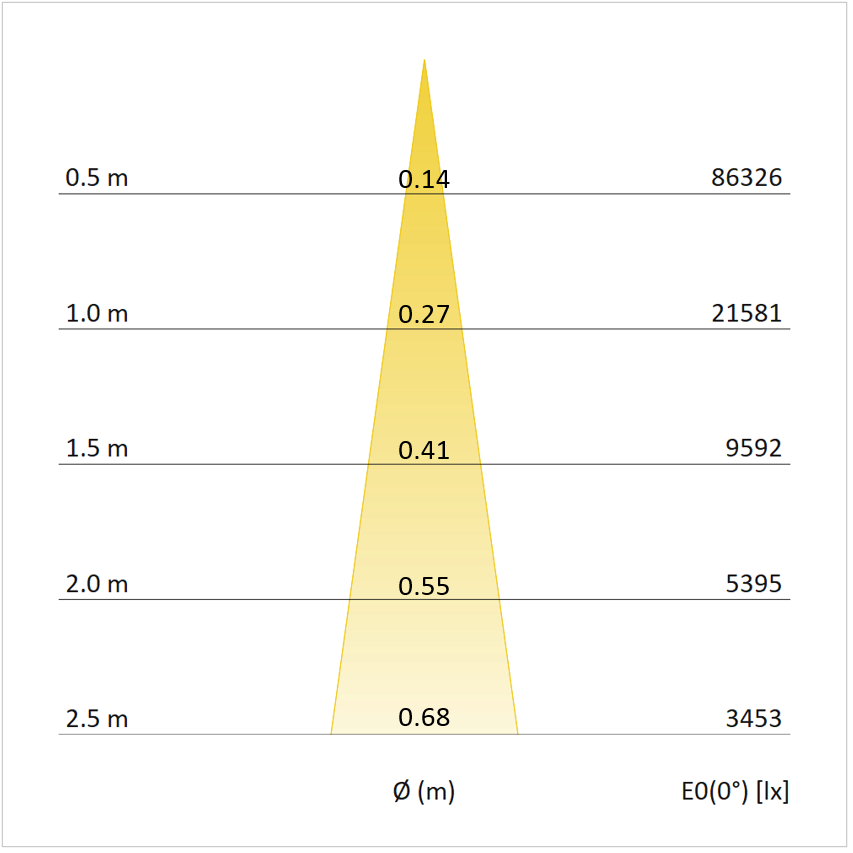

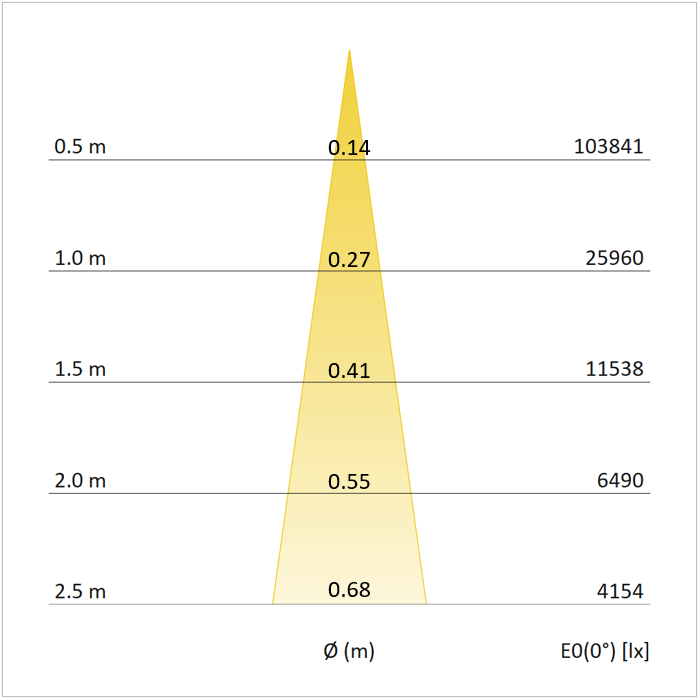

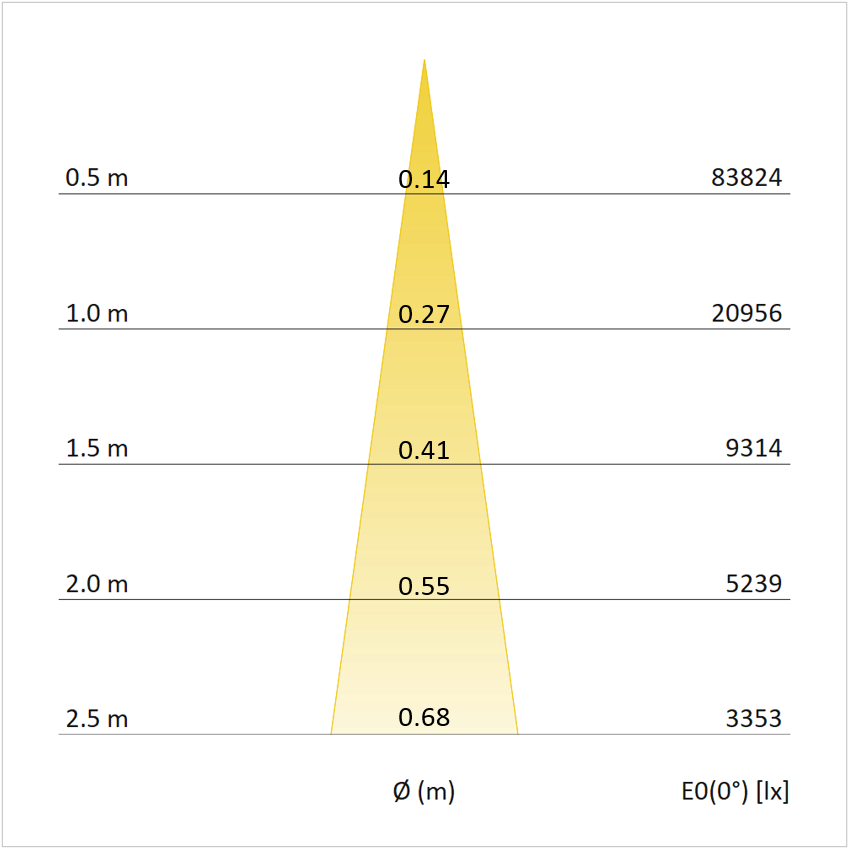

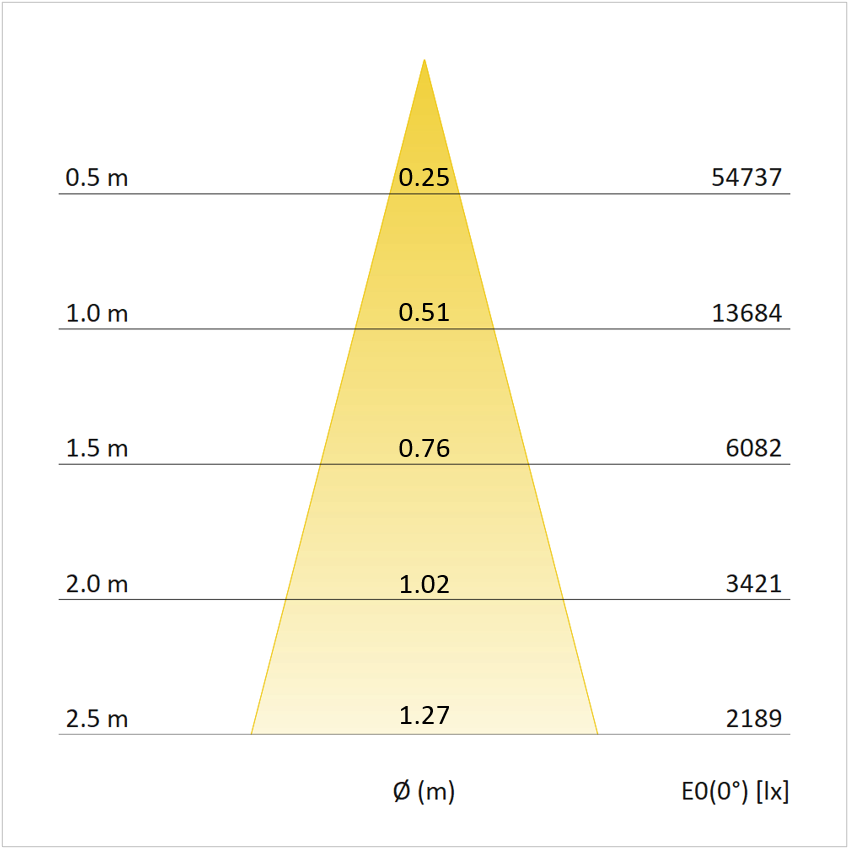

Light Distributions Options Reflector: Spot 15°, Narrow 28°, Flood 37°

Lens: Spot 16°, Narrow 25°, Flood 38°
Control Types On/Off, Dimmable (DALI, Casambi) by Request
Lumen Maintenance L80 B10 > 60kh, L90 B50 > 50kh, Ta 25°C
Colors White, Black
Weight 2720g
Installation Recessed in Ceiling
Certifications CE, UKCA, ENEC pending, IECEE CB pending
Dimensions

Codes & Downloads

  • Power (W)

  • CRI

  • Color Temperature

  • Beam Angle

  • Color

Relay-R Triple HE 90 code(s)
Useful
Luminous
Flux (Lm)		 Total
Power (W)		 mA CRI Color
Temperature
(CCT)		 Beam Angle Control Color Add to order
List
10350 74.3 3x650 90 4000K Efficient Cool White 15° On/Off Black +
10000 74.3 3x650 90 4000K Efficient Cool White 28° On/Off Black +
9850 74.3 3x650 90 4000K Efficient Cool White 37° On/Off Black +
6600 44.3 3x400 90 4000K Efficient Cool White 15° On/Off White +
6400 44.3 3x400 90 4000K Efficient Cool White 28° On/Off White +
6300 44.3 3x400 90 4000K Efficient Cool White 37° On/Off White +
6600 44.3 3x400 90 4000K Efficient Cool White 15° On/Off Black +
6400 44.3 3x400 90 4000K Efficient Cool White 28° On/Off Black +
6300 44.3 3x400 90 4000K Efficient Cool White 37° On/Off Black +
5050 33.0 3x300 90 4000K Efficient Cool White 15° On/Off White +
4900 33.0 3x300 90 4000K Efficient Cool White 28° On/Off White +
4800 33.0 3x300 90 4000K Efficient Cool White 37° On/Off White +
5050 33.0 3x300 90 4000K Efficient Cool White 15° On/Off Black +
4900 33.0 3x300 90 4000K Efficient Cool White 28° On/Off Black +
4800 33.0 3x300 90 4000K Efficient Cool White 37° On/Off Black +
15500 126.0 3x1050 90 4000K Efficient Cool White 15° On/Off White +
15000 126.0 3x1050 90 4000K Efficient Cool White 28° On/Off White +
14800 126.0 3x1050 90 4000K Efficient Cool White 37° On/Off White +
15500 126.0 3x1050 90 4000K Efficient Cool White 15° On/Off Black +
15000 126.0 3x1050 90 4000K Efficient Cool White 28° On/Off Black +
14800 126.0 3x1050 90 4000K Efficient Cool White 37° On/Off Black +
13050 99.7 3x850 90 4000K Efficient Cool White 15° On/Off White +
12650 99.7 3x850 90 4000K Efficient Cool White 28° On/Off White +
12450 99.7 3x850 90 4000K Efficient Cool White 37° On/Off White +
13050 99.7 3x850 90 4000K Efficient Cool White 15° On/Off Black +
12650 99.7 3x850 90 4000K Efficient Cool White 28° On/Off Black +
12450 99.7 3x850 90 4000K Efficient Cool White 37° On/Off Black +
10350 74.3 3x650 90 4000K Efficient Cool White 15° On/Off White +
10000 74.3 3x650 90 4000K Efficient Cool White 28° On/Off White +
9850 74.3 3x650 90 4000K Efficient Cool White 37° On/Off White +
10100 74.3 3x650 90 3500K B.BBL Efficient White 15° On/Off Black +
9800 74.3 3x650 90 3500K B.BBL Efficient White 28° On/Off Black +
9650 74.3 3x650 90 3500K B.BBL Efficient White 37° On/Off Black +
6450 44.3 3x400 90 3500K B.BBL Efficient White 15° On/Off White +
6250 44.3 3x400 90 3500K B.BBL Efficient White 28° On/Off White +
6150 44.3 3x400 90 3500K B.BBL Efficient White 37° On/Off White +
6450 44.3 3x400 90 3500K B.BBL Efficient White 15° On/Off Black +
6250 44.3 3x400 90 3500K B.BBL Efficient White 28° On/Off Black +
6150 44.3 3x400 90 3500K B.BBL Efficient White 37° On/Off Black +
4900 33.0 3x300 90 3500K B.BBL Efficient White 15° On/Off White +
4750 33.0 3x300 90 3500K B.BBL Efficient White 28° On/Off White +
4700 33.0 3x300 90 3500K B.BBL Efficient White 37° On/Off White +
4900 33.0 3x300 90 3500K B.BBL Efficient White 15° On/Off Black +
4750 33.0 3x300 90 3500K B.BBL Efficient White 28° On/Off Black +
4700 33.0 3x300 90 3500K B.BBL Efficient White 37° On/Off Black +
15100 126.0 3x1050 90 3500K B.BBL Efficient White 15° On/Off White +
14650 126.0 3x1050 90 3500K B.BBL Efficient White 28° On/Off White +
14400 126.0 3x1050 90 3500K B.BBL Efficient White 37° On/Off White +
15100 126.0 3x1050 90 3500K B.BBL Efficient White 15° On/Off Black +
14650 126.0 3x1050 90 3500K B.BBL Efficient White 28° On/Off Black +
14400 126.0 3x1050 90 3500K B.BBL Efficient White 37° On/Off Black +
12700 99.7 3x850 90 3500K B.BBL Efficient White 15° On/Off White +
12350 99.7 3x850 90 3500K B.BBL Efficient White 28° On/Off White +
12150 99.7 3x850 90 3500K B.BBL Efficient White 37° On/Off White +
12700 99.7 3x850 90 3500K B.BBL Efficient White 15° On/Off Black +
12350 99.7 3x850 90 3500K B.BBL Efficient White 28° On/Off Black +
12150 99.7 3x850 90 3500K B.BBL Efficient White 37° On/Off Black +
10100 74.3 3x650 90 3500K B.BBL Efficient White 15° On/Off White +
9800 74.3 3x650 90 3500K B.BBL Efficient White 28° On/Off White +
9650 74.3 3x650 90 3500K B.BBL Efficient White 37° On/Off White +
9850 74.3 3x650 90 3000K B.BBL Efficient White 15° On/Off Black +
9550 74.3 3x650 90 3000K B.BBL Efficient White 28° On/Off Black +
9400 74.3 3x650 90 3000K B.BBL Efficient White 37° On/Off Black +
6300 44.3 3x400 90 3000K B.BBL Efficient White 15° On/Off White +
6100 44.3 3x400 90 3000K B.BBL Efficient White 28° On/Off White +
6000 44.3 3x400 90 3000K B.BBL Efficient White 37° On/Off White +
6300 44.3 3x400 90 3000K B.BBL Efficient White 15° On/Off Black +
6100 44.3 3x400 90 3000K B.BBL Efficient White 28° On/Off Black +
6000 44.3 3x400 90 3000K B.BBL Efficient White 37° On/Off Black +
4800 33.0 3x300 90 3000K B.BBL Efficient White 15° On/Off White +
4650 33.0 3x300 90 3000K B.BBL Efficient White 28° On/Off White +
4550 33.0 3x300 90 3000K B.BBL Efficient White 37° On/Off White +
4800 33.0 3x300 90 3000K B.BBL Efficient White 15° On/Off Black +
4650 33.0 3x300 90 3000K B.BBL Efficient White 28° On/Off Black +
4550 33.0 3x300 90 3000K B.BBL Efficient White 37° On/Off Black +
14750 126.0 3x1050 90 3000K B.BBL Efficient White 15° On/Off White +
14300 126.0 3x1050 90 3000K B.BBL Efficient White 28° On/Off White +
14050 126.0 3x1050 90 3000K B.BBL Efficient White 37° On/Off White +
14750 126.0 3x1050 90 3000K B.BBL Efficient White 15° On/Off Black +
14300 126.0 3x1050 90 3000K B.BBL Efficient White 28° On/Off Black +
14050 126.0 3x1050 90 3000K B.BBL Efficient White 37° On/Off Black +
12400 99.7 3x850 90 3000K B.BBL Efficient White 15° On/Off White +
12050 99.7 3x850 90 3000K B.BBL Efficient White 28° On/Off White +
11850 99.7 3x850 90 3000K B.BBL Efficient White 37° On/Off White +
12400 99.7 3x850 90 3000K B.BBL Efficient White 15° On/Off Black +
12050 99.7 3x850 90 3000K B.BBL Efficient White 28° On/Off Black +
11850 99.7 3x850 90 3000K B.BBL Efficient White 37° On/Off Black +
9850 74.3 3x650 90 3000K B.BBL Efficient White 15° On/Off White +
9550 74.3 3x650 90 3000K B.BBL Efficient White 28° On/Off White +
9400 74.3 3x650 90 3000K B.BBL Efficient White 37° On/Off White +
Download pdf
