Overview

Relay is a modular recessed downlight system with a snap-in installation of the light module into the ceiling frame (single, double or triple), allowing fast and simple installation. For distributors, this enables minimization of stock keeping units while maximizing the versatility of the multi-purpose lighting tool.

Minimalistic yet Powerful
Relay-R Double HE is small and beautiful, yet it’s sturdy cooling allows a powerful max. light output of up to 5150Lm per light module which swivel up to 30° in any direction, performing both accent and general lighting tasks.

Best-in-Class Energy Efficiency
HE stands for High Efficiency, representing best-in-class energy efficiency at CRI90+ Below BBL Efficient White light. Check eligibility for energy efficiency subsidy from your local government.

Interchangeable Optics
The optics within and between Relay -R and -L are easily interchangeable by twist lock front-ring:

– The “-R” version uses a highly reflective, efficient aluminium reflector.
– The “-L” version uses sophisticated TIR lens technology for more concentrated light, delivering uniform light cone without color drift within the beam.

Relay-R Double HE is supplied with protective cover glass and is available with honeycomb accessory.



Relay-R HE Series Family Datasheet

Family Features

Lumen Classes 2x 1500 – 5150 lm
Power Range 2x 11 - 42W (Dip Switch: 300-1050mA)
Light Color Options 930 Below BBL Efficient White
935 Below BBL Efficient White
940 Efficient Cool

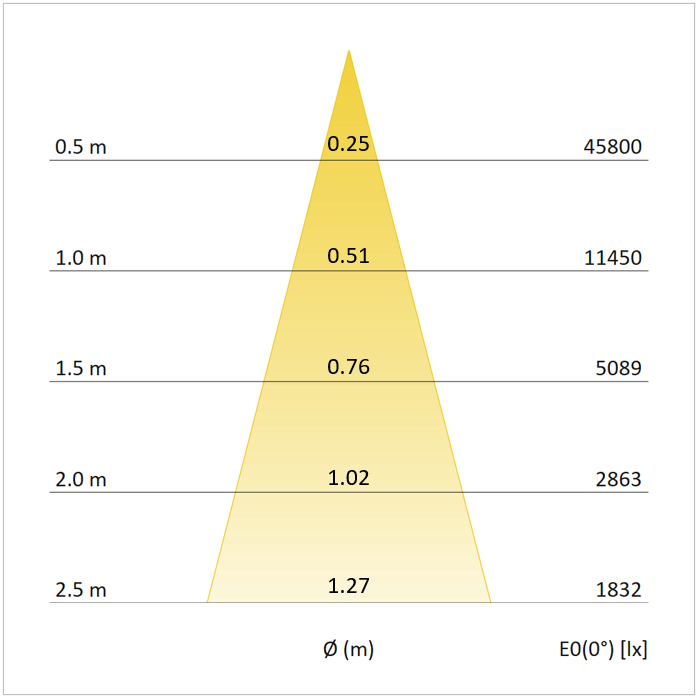

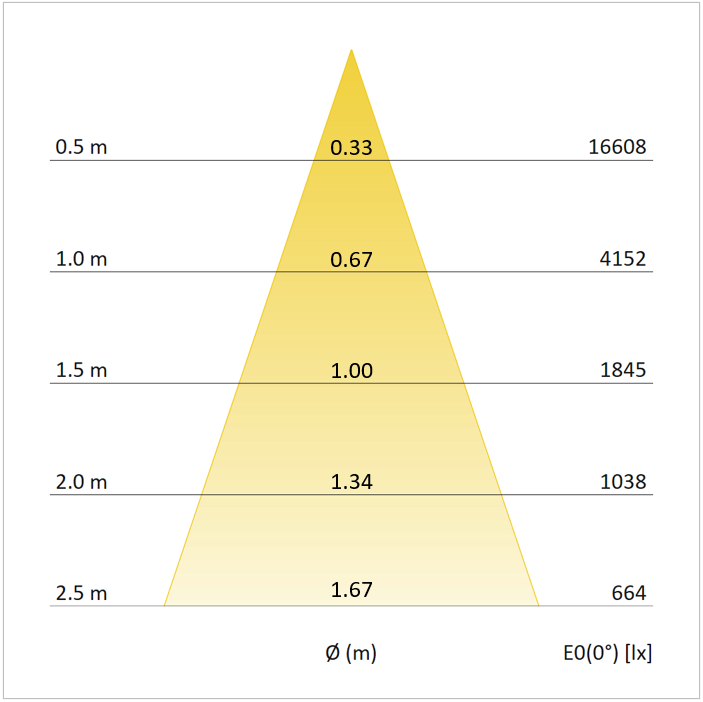

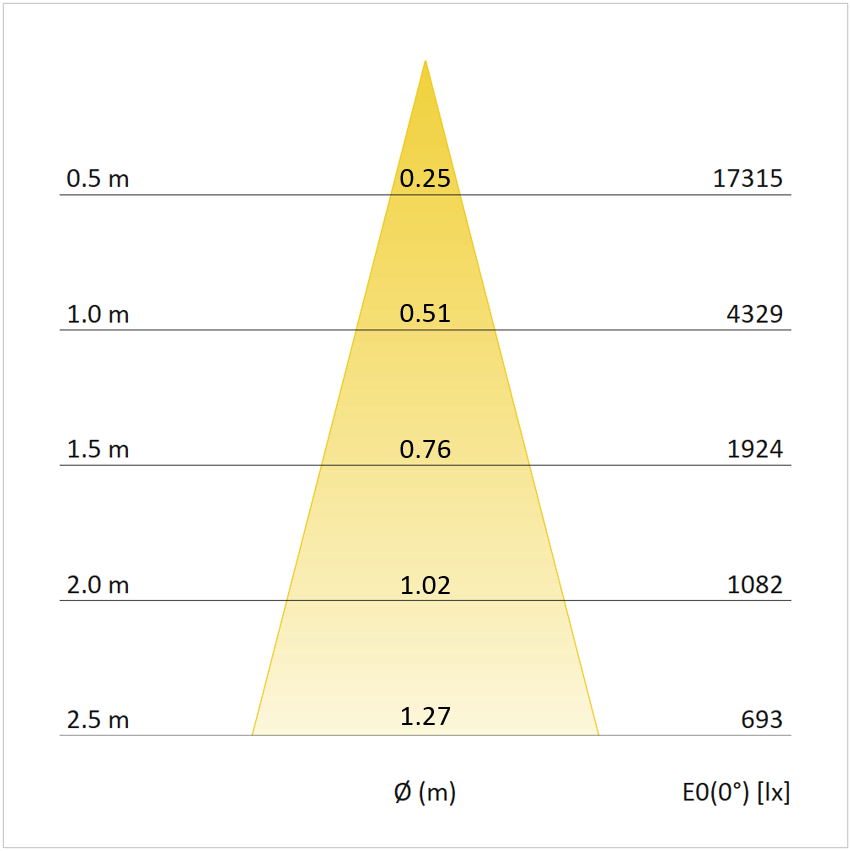

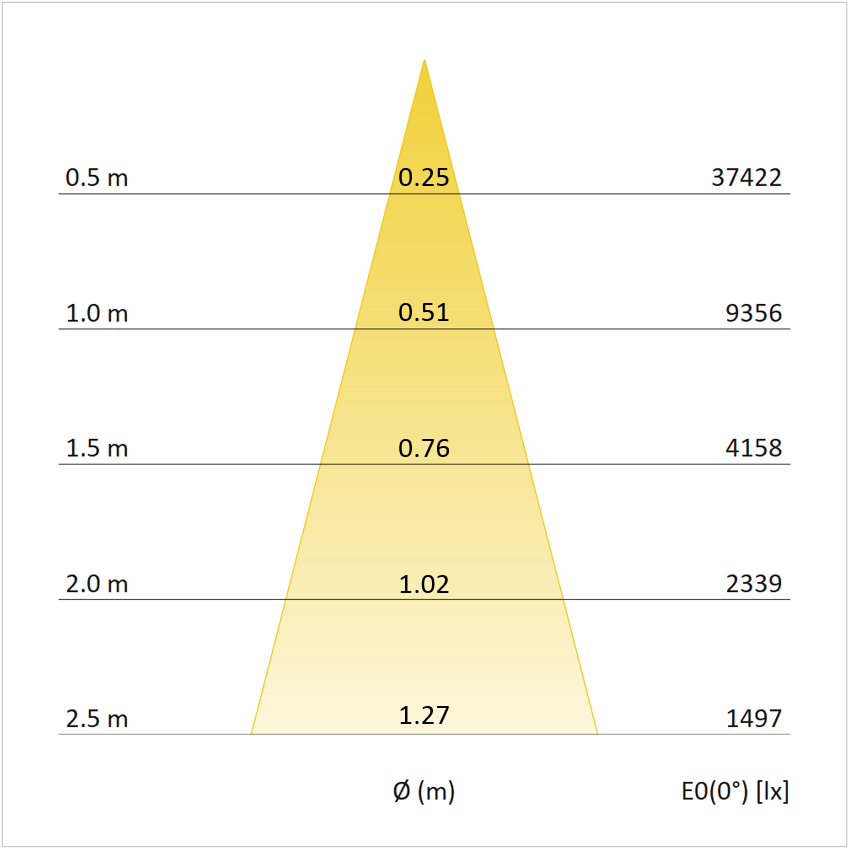

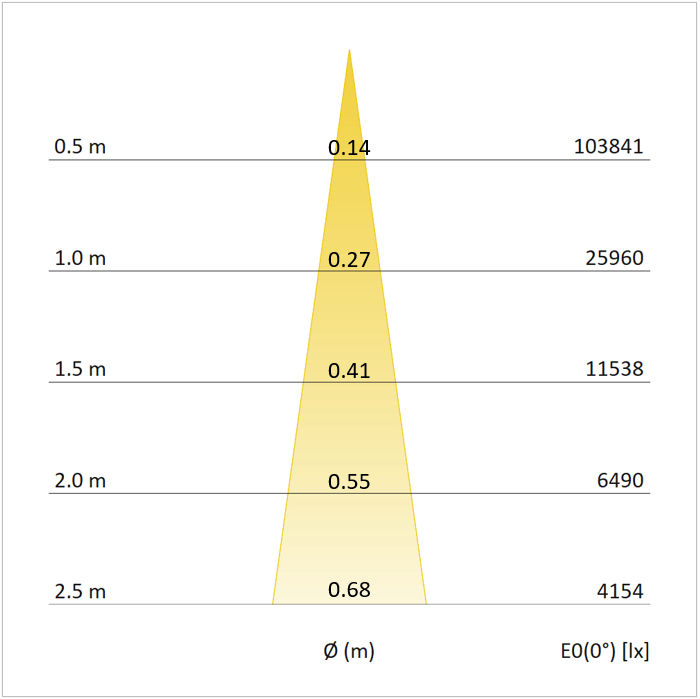

Light Distributions Options Reflector: Spot 15°, Narrow 28°, Flood 37°

Lens: Spot 16°, Narrow 25°, Flood 38°
Control Types On/Off, Dimmable (DALI, Casambi) by Request
Lumen Maintenance L80 B10 > 60kh, L90 B50 > 50kh, Ta 25°C
Colors White, Black
Weight 1830g
Installation Recessed in Ceiling
Certifications CE, UKCA, ENEC pending, IECEE CB pending
Dimensions

Codes & Downloads

  • Power (W)

  • CRI

  • Color Temperature

  • Beam Angle

  • Color

Relay-R Double HE 90 code(s)
Useful
Luminous
Flux (Lm)		 Total
Power (W)		 mA CRI Color
Temperature
(CCT)		 Beam Angle Control Color Add to order
List
6900 49.6 2x650 90 4000K Efficient Cool White 15° On/Off Black +
6700 49.6 2x650 90 4000K Efficient Cool White 28° On/Off Black +
6550 49.6 2x650 90 4000K Efficient Cool White 37° On/Off Black +
4400 29.6 2x400 90 4000K Efficient Cool White 15° On/Off White +
4300 29.6 2x400 90 4000K Efficient Cool White 28° On/Off White +
4200 29.6 2x400 90 4000K Efficient Cool White 37° On/Off White +
4400 29.6 2x400 90 4000K Efficient Cool White 15° On/Off Black +
4300 29.6 2x400 90 4000K Efficient Cool White 28° On/Off Black +
4200 29.6 2x400 90 4000K Efficient Cool White 37° On/Off Black +
3350 22.0 2x300 90 4000K Efficient Cool White 15° On/Off White +
3250 22.0 2x300 90 4000K Efficient Cool White 28° On/Off White +
3200 22.0 2x300 90 4000K Efficient Cool White 37° On/Off White +
3350 22.0 2x300 90 4000K Efficient Cool White 15° On/Off Black +
3250 22.0 2x300 90 4000K Efficient Cool White 28° On/Off Black +
3200 22.0 2x300 90 4000K Efficient Cool White 37° On/Off Black +
10300 84.0 2x1050 90 4000K Efficient Cool White 15° On/Off White +
10000 84.0 2x1050 90 4000K Efficient Cool White 28° On/Off White +
9850 84.0 2x1050 90 4000K Efficient Cool White 37° On/Off White +
10300 84.0 2x1050 90 4000K Efficient Cool White 15° On/Off Black +
10000 84.0 2x1050 90 4000K Efficient Cool White 28° On/Off Black +
9850 84.0 2x1050 90 4000K Efficient Cool White 37° On/Off Black +
8700 66.4 2x850 90 4000K Efficient Cool White 15° On/Off White +
8400 66.4 2x850 90 4000K Efficient Cool White 28° On/Off White +
8300 66.4 2x850 90 4000K Efficient Cool White 37° On/Off White +
8700 66.4 2x850 90 4000K Efficient Cool White 15° On/Off Black +
8400 66.4 2x850 90 4000K Efficient Cool White 28° On/Off Black +
8300 66.4 2x850 90 4000K Efficient Cool White 37° On/Off Black +
6900 49.6 2x650 90 4000K Efficient Cool White 15° On/Off White +
6700 49.6 2x650 90 4000K Efficient Cool White 28° On/Off White +
6550 49.6 2x650 90 4000K Efficient Cool White 37° On/Off White +
6700 49.6 2x650 90 3500K B.BBL Efficient White 15° On/Off Black +
6500 49.6 2x650 90 3500K B.BBL Efficient White 28° On/Off Black +
6400 49.6 2x650 90 3500K B.BBL Efficient White 37° On/Off Black +
4300 29.6 2x400 90 3500K B.BBL Efficient White 15° On/Off White +
4150 29.6 2x400 90 3500K B.BBL Efficient White 28° On/Off White +
4100 29.6 2x400 90 3500K B.BBL Efficient White 37° On/Off White +
4300 29.6 2x400 90 3500K B.BBL Efficient White 15° On/Off Black +
4150 29.6 2x400 90 3500K B.BBL Efficient White 28° On/Off Black +
4100 29.6 2x400 90 3500K B.BBL Efficient White 37° On/Off Black +
3250 22.0 2x300 90 3500K B.BBL Efficient White 15° On/Off White +
3200 22.0 2x300 90 3500K B.BBL Efficient White 28° On/Off White +
3100 22.0 2x300 90 3500K B.BBL Efficient White 37° On/Off White +
3250 22.0 2x300 90 3500K B.BBL Efficient White 15° On/Off Black +
3200 22.0 2x300 90 3500K B.BBL Efficient White 28° On/Off Black +
3100 22.0 2x300 90 3500K B.BBL Efficient White 37° On/Off Black +
10050 84.0 2x1050 90 3500K B.BBL Efficient White 15° On/Off White +
9750 84.0 2x1050 90 3500K B.BBL Efficient White 28° On/Off White +
9600 84.0 2x1050 90 3500K B.BBL Efficient White 37° On/Off White +
10050 84.0 2x1050 90 3500K B.BBL Efficient White 15° On/Off Black +
9750 84.0 2x1050 90 3500K B.BBL Efficient White 28° On/Off Black +
9600 84.0 2x1050 90 3500K B.BBL Efficient White 37° On/Off Black +
8500 66.4 2x850 90 3500K B.BBL Efficient White 15° On/Off White +
8200 66.4 2x850 90 3500K B.BBL Efficient White 28° On/Off White +
8100 66.4 2x850 90 3500K B.BBL Efficient White 37° On/Off White +
8500 66.4 2x850 90 3500K B.BBL Efficient White 15° On/Off Black +
8200 66.4 2x850 90 3500K B.BBL Efficient White 28° On/Off Black +
8100 66.4 2x850 90 3500K B.BBL Efficient White 37° On/Off Black +
6700 49.6 2x650 90 3500K B.BBL Efficient White 15° On/Off White +
6500 49.6 2x650 90 3500K B.BBL Efficient White 28° On/Off White +
6400 49.6 2x650 90 3500K B.BBL Efficient White 37° On/Off White +
6550 49.6 2x650 90 3000K B.BBL Efficient White 15° On/Off Black +
6350 49.6 2x650 90 3000K B.BBL Efficient White 28° On/Off Black +
6250 49.6 2x650 90 3000K B.BBL Efficient White 37° On/Off Black +
4200 29.6 2x400 90 3000K B.BBL Efficient White 15° On/Off White +
4050 29.6 2x400 90 3000K B.BBL Efficient White 28° On/Off White +
4000 29.6 2x400 90 3000K B.BBL Efficient White 37° On/Off White +
4200 29.6 2x400 90 3000K B.BBL Efficient White 15° On/Off Black +
4050 29.6 2x400 90 3000K B.BBL Efficient White 28° On/Off Black +
4000 29.6 2x400 90 3000K B.BBL Efficient White 37° On/Off Black +
3200 22.0 2x300 90 3000K B.BBL Efficient White 15° On/Off White +
3100 22.0 2x300 90 3000K B.BBL Efficient White 28° On/Off White +
3050 22.0 2x300 90 3000K B.BBL Efficient White 37° On/Off White +
3200 22.0 2x300 90 3000K B.BBL Efficient White 15° On/Off Black +
3100 22.0 2x300 90 3000K B.BBL Efficient White 28° On/Off Black +
3050 22.0 2x300 90 3000K B.BBL Efficient White 37° On/Off Black +
9800 84.0 2x1050 90 3000K B.BBL Efficient White 15° On/Off White +
9550 84.0 2x1050 90 3000K B.BBL Efficient White 28° On/Off White +
9400 84.0 2x1050 90 3000K B.BBL Efficient White 37° On/Off White +
9800 84.0 2x1050 90 3000K B.BBL Efficient White 15° On/Off Black +
9550 84.0 2x1050 90 3000K B.BBL Efficient White 28° On/Off Black +
9400 84.0 2x1050 90 3000K B.BBL Efficient White 37° On/Off Black +
8250 66.4 2x850 90 3000K B.BBL Efficient White 15° On/Off White +
8000 66.4 2x850 90 3000K B.BBL Efficient White 28° On/Off White +
7900 66.4 2x850 90 3000K B.BBL Efficient White 37° On/Off White +
8250 66.4 2x850 90 3000K B.BBL Efficient White 15° On/Off Black +
8000 66.4 2x850 90 3000K B.BBL Efficient White 28° On/Off Black +
7900 66.4 2x850 90 3000K B.BBL Efficient White 37° On/Off Black +
6550 49.6 2x650 90 3000K B.BBL Efficient White 15° On/Off White +
6350 49.6 2x650 90 3000K B.BBL Efficient White 28° On/Off White +
6250 49.6 2x650 90 3000K B.BBL Efficient White 37° On/Off White +
Download pdf
