Overview

Versatile, recessed downlight Hilo champions functionality. When swiveled, it functions as a powerful accent lighting tool or a wall washer and when flush, it offers comfortable, yet powerful general light.

Extreme Flexibility
With adjustable power and lumen packages, interchangeable optics, and variety of light colors, Hilo is designed to cater all LED lighting needs for retail sector and commercial premises. Hilo downlight is the perfect combination of style and performance, allowing you complete control over your lighting needs.

Interchangeable Optics
The optics within and between Hilo -R and -L are easily interchangeable by twist lock front-ring:

– The “-R” version uses a highly reflective, efficient aluminium reflector.
– The “-L” version uses sophisticated TIR lens technology for more concentrated light, delivering uniform light cone without color drift within the beam.

Hilo-R is supplied with protective cover glass and is available with honeycomb accessory.



Hilo-R Family Datasheet

Family Features

Lumen Classes 1150 – 4600 lm
Power Range 11 - 43W (Dip Switch: 300-1050mA)
Light Color Options High CRI, Color Intensifying LED Arrays:
- 927 Below BBL Warm White
- 930 Below BBL Clean White
- 935 Below BBL
- 940 Cold White

Standard Spectrum:
- 830
- 840

Special:
- Bakery & Pastry
- Meat

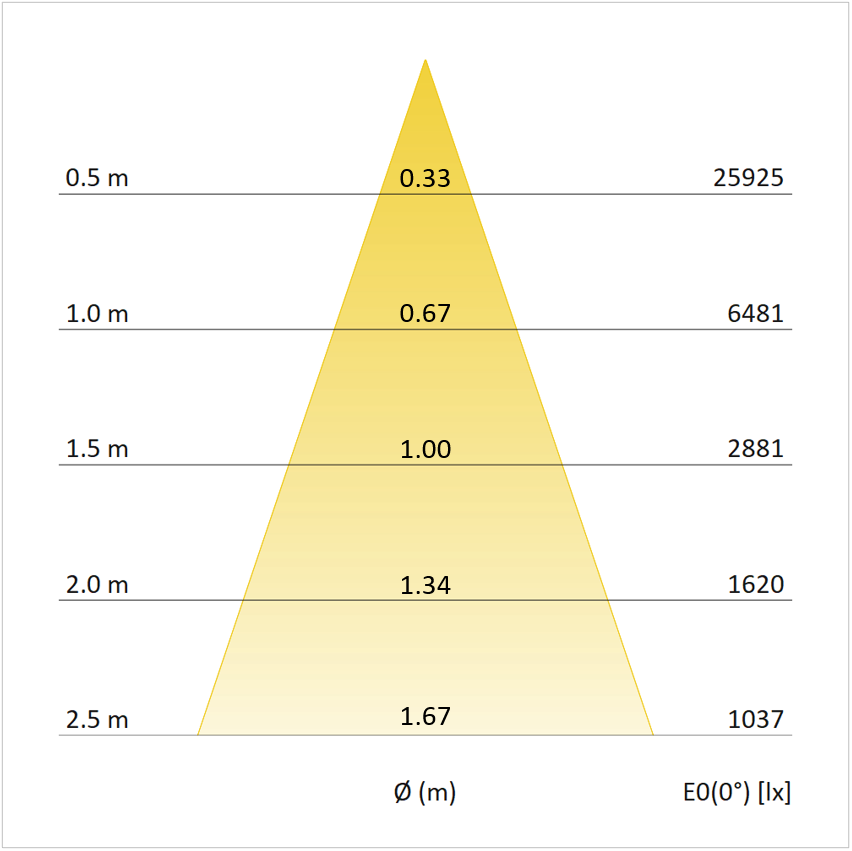

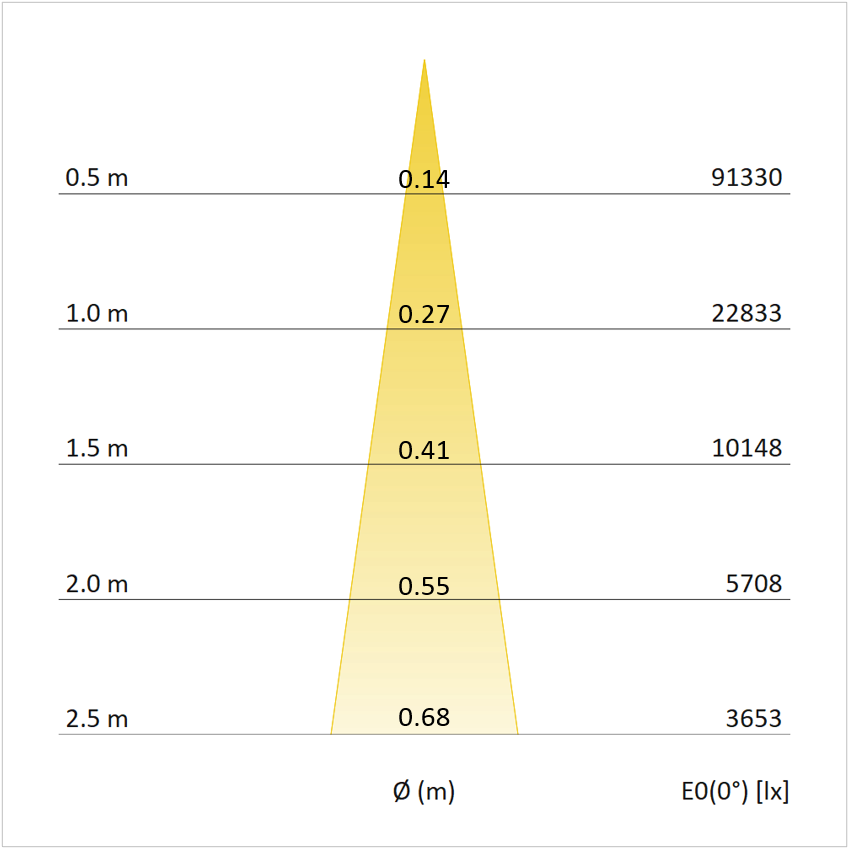

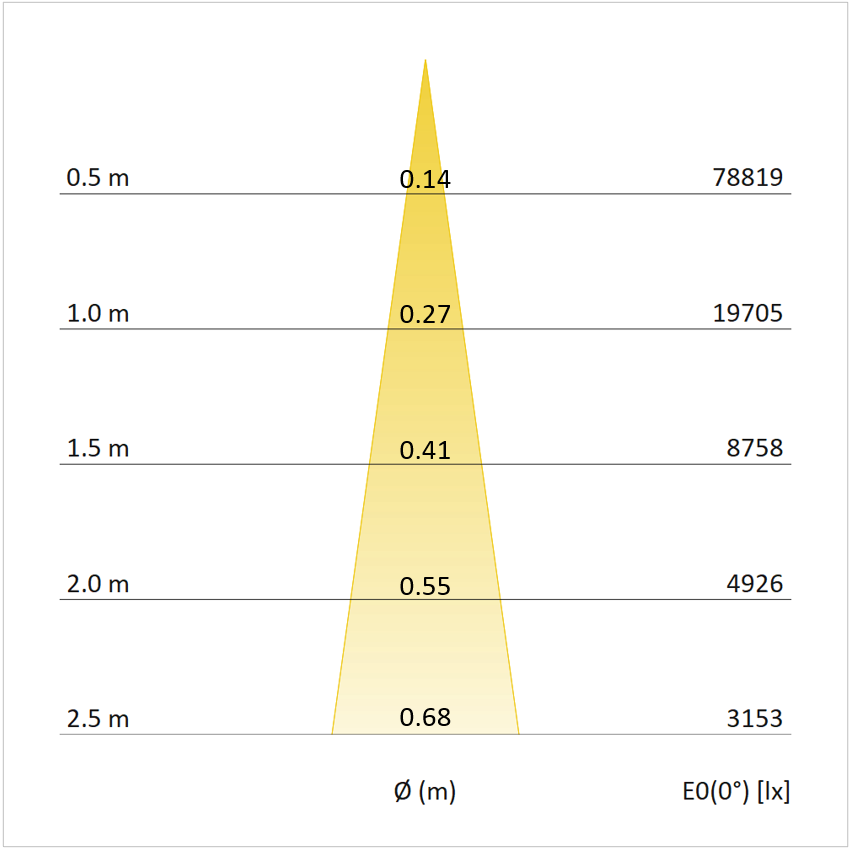

Light Distributions Options Reflector: Spot 15°, Narrow 28°, Flood 37°

Lens: Spot 16°, Narrow 25°, Flood 38°
Control Types On/Off, Dimmable (DALI, Casambi) by Request
Lumen Maintenance L80 B10 > 60kh, L90 B50 > 50kh, Ta 25°C
Colors White, Black
Weight 1150g
Installation Recessed in Ceiling
Certifications CE, UKCA, ENEC pending, IECEE CB pending
Dimensions

Codes & Downloads

  • Power (W)

  • CRI

  • Color Temperature

  • Beam Angle

  • Color

Hilo-R 180 code(s)
Useful
Luminous
Flux (Lm)		 Total
Power (W)		 mA CRI Color
Temperature
(CCT)		 Beam Angle Control Color Add to order
List
3150 25.3 650 80 4000K 15° On/Off Black +
3050 25.3 650 80 4000K 28° On/Off Black +
3000 25.3 650 80 4000K 37° On/Off Black +
2050 15.1 400 80 4000K 15° On/Off White +
2000 15.1 400 80 4000K 28° On/Off White +
1950 15.1 400 80 4000K 37° On/Off White +
2050 15.1 400 80 4000K 15° On/Off Black +
2000 15.1 400 80 4000K 28° On/Off Black +
1950 15.1 400 80 4000K 37° On/Off Black +
1600 11.1 300 80 4000K 15° On/Off White +
1550 11.1 300 80 4000K 28° On/Off White +
1500 11.1 300 80 4000K 37° On/Off White +
1600 11.1 300 80 4000K 15° On/Off Black +
1550 11.1 300 80 4000K 28° On/Off Black +
1500 11.1 300 80 4000K 37° On/Off Black +
4600 42.8 1050 80 4000K 15° On/Off White +
4450 42.8 1050 80 4000K 28° On/Off White +
4400 42.8 1050 80 4000K 37° On/Off White +
4600 42.8 1050 80 4000K 15° On/Off Black +
4450 42.8 1050 80 4000K 28° On/Off Black +
4400 42.8 1050 80 4000K 37° On/Off Black +
3950 34 850 80 4000K 15° On/Off White +
3800 34 850 80 4000K 28° On/Off White +
3750 34 850 80 4000K 37° On/Off White +
3950 34 850 80 4000K 15° On/Off Black +
3800 34 850 80 4000K 28° On/Off Black +
3750 34 850 80 4000K 37° On/Off Black +
3150 25.3 650 80 4000K 15° On/Off White +
3050 25.3 650 80 4000K 28° On/Off White +
3000 25.3 650 80 4000K 37° On/Off White +
3100 25.3 650 80 3000K 15° On/Off Black +
3000 25.3 650 80 3000K 28° On/Off Black +
2950 25.3 650 80 3000K 37° On/Off Black +
2000 15.1 400 80 3000K 15° On/Off White +
1950 15.1 400 80 3000K 28° On/Off White +
1900 15.1 400 80 3000K 37° On/Off White +
2000 15.1 400 80 3000K 15° On/Off Black +
1950 15.1 400 80 3000K 28° On/Off Black +
1900 15.1 400 80 3000K 37° On/Off Black +
1550 11.1 300 80 3000K 15° On/Off White +
1500 11.1 300 80 3000K 28° On/Off White +
1500 11.1 300 80 3000K 37° On/Off White +
1550 11.1 300 80 3000K 15° On/Off Black +
1500 11.1 300 80 3000K 28° On/Off Black +
1500 11.1 300 80 3000K 37° On/Off Black +
4500 42.8 1050 80 3000K 15° On/Off White +
4350 42.8 1050 80 3000K 28° On/Off White +
4300 42.8 1050 80 3000K 37° On/Off White +
4500 42.8 1050 80 3000K 15° On/Off Black +
4350 42.8 1050 80 3000K 28° On/Off Black +
4300 42.8 1050 80 3000K 37° On/Off Black +
3850 34 850 80 3000K 15° On/Off White +
3700 34 850 80 3000K 28° On/Off White +
3650 34 850 80 3000K 37° On/Off White +
3850 34 850 80 3000K 15° On/Off Black +
3700 34 850 80 3000K 28° On/Off Black +
3650 34 850 80 3000K 37° On/Off Black +
3100 25.3 650 80 3000K 15° On/Off White +
3000 25.3 650 80 3000K 28° On/Off White +
2950 25.3 650 80 3000K 37° On/Off White +
2700 25.3 650 94 4000K Cool White 15° On/Off Black +
2600 25.3 650 94 4000K Cool White 28° On/Off Black +
2550 25.3 650 94 4000K Cool White 37° On/Off Black +
1750 15.1 400 94 4000K Cool White 15° On/Off White +
1700 15.1 400 94 4000K Cool White 28° On/Off White +
1650 15.1 400 94 4000K Cool White 37° On/Off White +
1750 15.1 400 94 4000K Cool White 15° On/Off Black +
1700 15.1 400 94 4000K Cool White 28° On/Off Black +
1650 15.1 400 94 4000K Cool White 37° On/Off Black +
1350 11.1 300 94 4000K Cool White 15° On/Off White +
1300 11.1 300 94 4000K Cool White 28° On/Off White +
1300 11.1 300 94 4000K Cool White 37° On/Off White +
1350 11.1 300 94 4000K Cool White 15° On/Off Black +
1300 11.1 300 94 4000K Cool White 28° On/Off Black +
1300 11.1 300 94 4000K Cool White 37° On/Off Black +
3900 42.8 1050 94 4000K Cool White 15° On/Off White +
3800 42.8 1050 94 4000K Cool White 28° On/Off White +
3750 42.8 1050 94 4000K Cool White 37° On/Off White +
3900 42.8 1050 94 4000K Cool White 15° On/Off Black +
3800 42.8 1050 94 4000K Cool White 28° On/Off Black +
3750 42.8 1050 94 4000K Cool White 37° On/Off Black +
3350 34 850 94 4000K Cool White 15° On/Off White +
3250 34 850 94 4000K Cool White 28° On/Off White +
3200 34 850 94 4000K Cool White 37° On/Off White +
3350 34 850 94 4000K Cool White 15° On/Off Black +
3250 34 850 94 4000K Cool White 28° On/Off Black +
3200 34 850 94 4000K Cool White 37° On/Off Black +
2700 25.3 650 94 4000K Cool White 15° On/Off White +
2600 25.3 650 94 4000K Cool White 28° On/Off White +
2550 25.3 650 94 4000K Cool White 37° On/Off White +
2550 25.3 650 93 3500K B.BBL 15° On/Off Black +
2450 25.3 650 93 3500K B.BBL 28° On/Off Black +
2450 25.3 650 93 3500K B.BBL 37° On/Off Black +
1650 15.1 400 93 3500K B.BBL 15° On/Off White +
1600 15.1 400 93 3500K B.BBL 28° On/Off White +
1600 15.1 400 93 3500K B.BBL 37° On/Off White +
1650 15.1 400 93 3500K B.BBL 15° On/Off Black +
1600 15.1 400 93 3500K B.BBL 28° On/Off Black +
1600 15.1 400 93 3500K B.BBL 37° On/Off Black +
1300 11.1 300 93 3500K B.BBL 15° On/Off White +
1250 11.1 300 93 3500K B.BBL 28° On/Off White +
1200 11.1 300 93 3500K B.BBL 37° On/Off White +
1300 11.1 300 93 3500K B.BBL 15° On/Off Black +
1250 11.1 300 93 3500K B.BBL 28° On/Off Black +
1200 11.1 300 93 3500K B.BBL 37° On/Off Black +
3700 42.8 1050 93 3500K B.BBL 15° On/Off White +
3600 42.8 1050 93 3500K B.BBL 28° On/Off White +
3550 42.8 1050 93 3500K B.BBL 37° On/Off White +
3700 42.8 1050 93 3500K B.BBL 15° On/Off Black +
3600 42.8 1050 93 3500K B.BBL 28° On/Off Black +
3550 42.8 1050 93 3500K B.BBL 37° On/Off Black +
3150 34 850 93 3500K B.BBL 15° On/Off White +
3050 34 850 93 3500K B.BBL 28° On/Off White +
3000 34 850 93 3500K B.BBL 37° On/Off White +
3150 34 850 93 3500K B.BBL 15° On/Off Black +
3050 34 850 93 3500K B.BBL 28° On/Off Black +
3000 34 850 93 3500K B.BBL 37° On/Off Black +
2550 25.3 650 93 3500K B.BBL 15° On/Off White +
2450 25.3 650 93 3500K B.BBL 28° On/Off White +
2450 25.3 650 93 3500K B.BBL 37° On/Off White +
2400 25.3 650 94 2700K B.BBL 15° On/Off Black +
2350 25.3 650 94 2700K B.BBL 28° On/Off Black +
2300 25.3 650 94 2700K B.BBL 37° On/Off Black +
1600 15.1 400 94 2700K B.BBL 15° On/Off White +
1550 15.1 400 94 2700K B.BBL 28° On/Off White +
1500 15.1 400 94 2700K B.BBL 37° On/Off White +
1600 15.1 400 94 2700K B.BBL 15° On/Off Black +
1550 15.1 400 94 2700K B.BBL 28° On/Off Black +
1500 15.1 400 94 2700K B.BBL 37° On/Off Black +
1200 11.1 300 94 2700K B.BBL 15° On/Off White +
1200 11.1 300 94 2700K B.BBL 28° On/Off White +
1150 11.1 300 94 2700K B.BBL 37° On/Off White +
1200 11.1 300 94 2700K B.BBL 15° On/Off Black +
1200 11.1 300 94 2700K B.BBL 28° On/Off Black +
1150 11.1 300 94 2700K B.BBL 37° On/Off Black +
3500 42.8 1050 94 2700K B.BBL 15° On/Off White +
3400 42.8 1050 94 2700K B.BBL 28° On/Off White +
3350 42.8 1050 94 2700K B.BBL 37° On/Off White +
3500 42.8 1050 94 2700K B.BBL 15° On/Off Black +
3400 42.8 1050 94 2700K B.BBL 28° On/Off Black +
3350 42.8 1050 94 2700K B.BBL 37° On/Off Black +
3000 34 850 94 2700K B.BBL 15° On/Off White +
2900 34 850 94 2700K B.BBL 28° On/Off White +
2850 34 850 94 2700K B.BBL 37° On/Off White +
3000 34 850 94 2700K B.BBL 15° On/Off Black +
2900 34 850 94 2700K B.BBL 28° On/Off Black +
2850 34 850 94 2700K B.BBL 37° On/Off Black +
2400 25.3 650 94 2700K B.BBL 15° On/Off White +
2350 25.3 650 94 2700K B.BBL 28° On/Off White +
2300 25.3 650 94 2700K B.BBL 37° On/Off White +
2500 25.3 650 94 3000K B.BBL Clean White 15° On/Off Black +
2450 25.3 650 94 3000K B.BBL Clean White 28° On/Off Black +
2400 25.3 650 94 3000K B.BBL Clean White 37° On/Off Black +
1650 15.1 400 94 3000K B.BBL Clean White 15° On/Off White +
1600 15.1 400 94 3000K B.BBL Clean White 28° On/Off White +
1550 15.1 400 94 3000K B.BBL Clean White 37° On/Off White +
1650 15.1 400 94 3000K B.BBL Clean White 15° On/Off Black +
1600 15.1 400 94 3000K B.BBL Clean White 28° On/Off Black +
1550 15.1 400 94 3000K B.BBL Clean White 37° On/Off Black +
1250 11.1 300 94 3000K B.BBL Clean White 15° On/Off White +
1200 11.1 300 94 3000K B.BBL Clean White 28° On/Off White +
1200 11.1 300 94 3000K B.BBL Clean White 37° On/Off White +
1250 11.1 300 94 3000K B.BBL Clean White 15° On/Off Black +
1200 11.1 300 94 3000K B.BBL Clean White 28° On/Off Black +
1200 11.1 300 94 3000K B.BBL Clean White 37° On/Off Black +
3650 42.8 1050 94 3000K B.BBL Clean White 15° On/Off White +
3550 42.8 1050 94 3000K B.BBL Clean White 28° On/Off White +
3500 42.8 1050 94 3000K B.BBL Clean White 37° On/Off White +
3650 42.8 1050 94 3000K B.BBL Clean White 15° On/Off Black +
3550 42.8 1050 94 3000K B.BBL Clean White 28° On/Off Black +
3500 42.8 1050 94 3000K B.BBL Clean White 37° On/Off Black +
3100 34 850 94 3000K B.BBL Clean White 15° On/Off White +
3000 34 850 94 3000K B.BBL Clean White 28° On/Off White +
3000 34 850 94 3000K B.BBL Clean White 37° On/Off White +
3100 34 850 94 3000K B.BBL Clean White 15° On/Off Black +
3000 34 850 94 3000K B.BBL Clean White 28° On/Off Black +
3000 34 850 94 3000K B.BBL Clean White 37° On/Off Black +
2500 25.3 650 94 3000K B.BBL Clean White 15° On/Off White +
2450 25.3 650 94 3000K B.BBL Clean White 28° On/Off White +
2400 25.3 650 94 3000K B.BBL Clean White 37° On/Off White +
Download pdf
