Overview

Relay is a modular recessed downlight system with a snap-in installation of the light module into the ceiling frame (single, double or triple), allowing fast and simple installation. For distributors, this enables minimization of stock keeping units while maximizing the versatility of the multi-purpose lighting tool.

Minimalistic yet Powerful
Relay-R HE is small and beautiful, yet it’s sturdy cooling allows a powerful max. light output of up to 5150Lm per light module which swivel up to 30° in any direction, performing both accent and general lighting tasks.

Best-in-Class Energy Efficiency
HE stands for High Efficiency, representing best-in-class energy efficiency at CRI90+ Below BBL Efficient White light. Check eligibility for energy efficiency subsidy from your local government.

Interchangeable Optics
The optics within and between Relay -R and -L are easily interchangeable by twist lock front-ring:

– The “-R” version uses a highly reflective, efficient aluminium reflector.
– The “-L” version uses sophisticated TIR lens technology for more concentrated light, delivering uniform light cone without color drift within the beam.

Relay-R HE is supplied with protective cover glass and is available with honeycomb accessory.



Relay-R HE Series Family Datasheet

Family Features

Lumen Classes 1500 – 5150 lm
Power Range 11 - 42W (Dip Switch: 300-1050mA)
Light Color Options 930 Below BBL Efficient White
935 Below BBL Efficient White
940 Efficient Cool

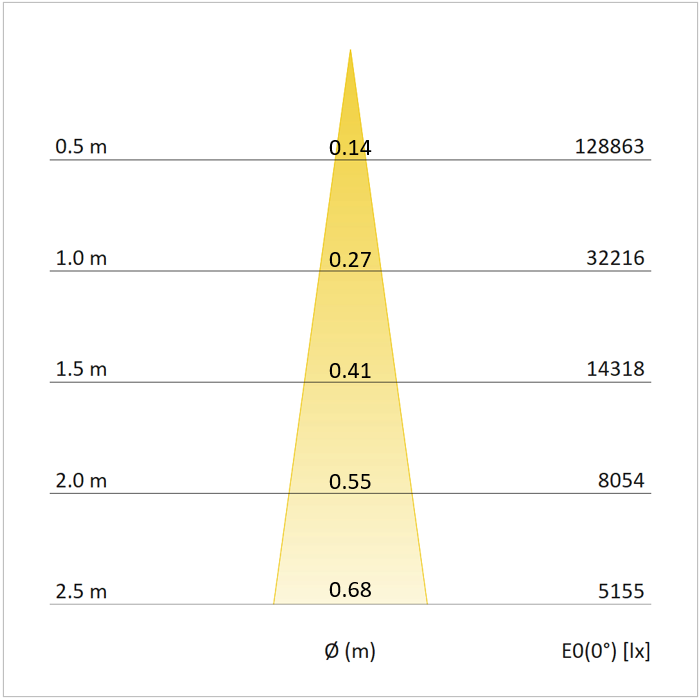

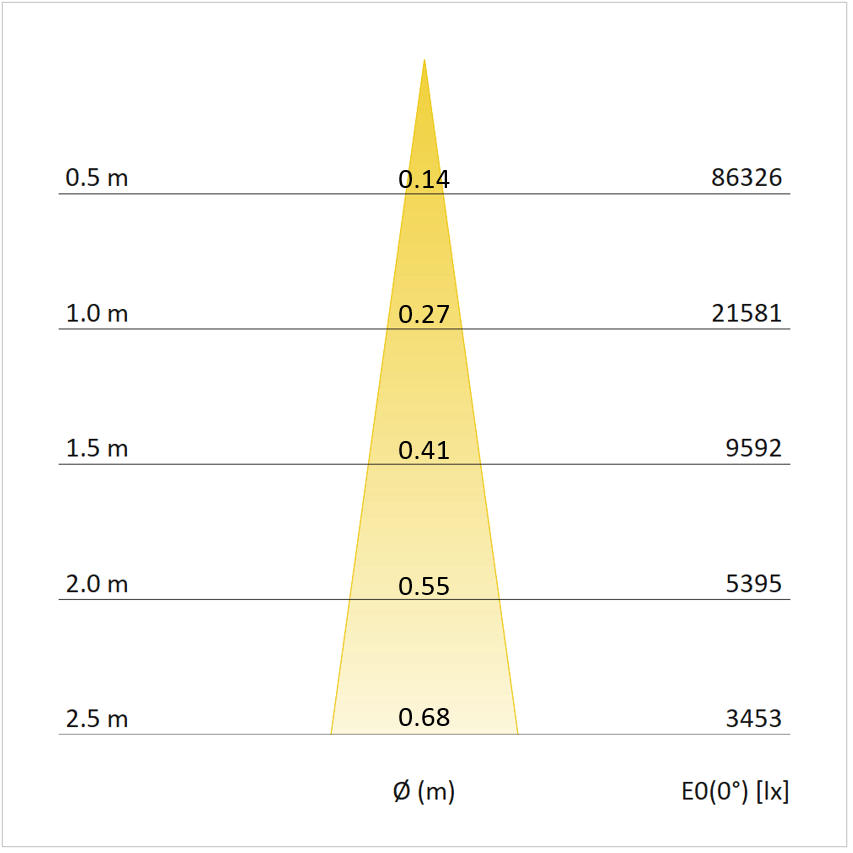

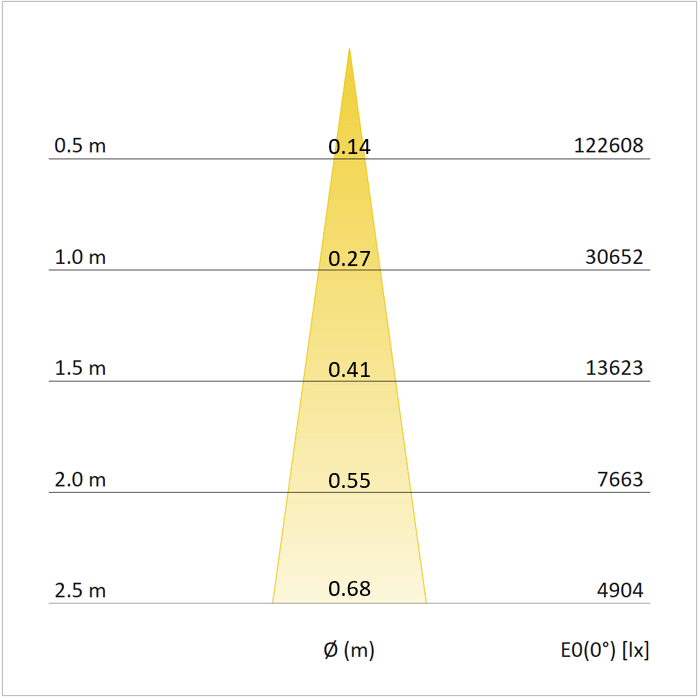

Light Distributions Options Reflector: Spot 15°, Narrow 28°, Flood 37°

Lens: Spot 16°, Narrow 25°, Flood 38°
Control Types On/Off, Dimmable (DALI, Casambi) by Request
Lumen Maintenance L80 B10 > 60kh, L90 B50 > 50kh, Ta 25°C
Colors White, Black
Weight 940g
Installation Recessed in Ceiling
Certifications CE, UKCA, ENEC pending, IECEE CB pending
Dimensions

Codes & Downloads

  • Power (W)

  • CRI

  • Color Temperature

  • Beam Angle

  • Color

Relay-R HE 90 code(s)
Useful
Luminous
Flux (Lm)		 Total
Power (W)		 mA CRI Color
Temperature
(CCT)		 Beam Angle Control Color Add to order
List
3450 24.8 650 90 4000K Efficient Cool White 15° On/Off Black +
3350 24.8 650 90 4000K Efficient Cool White 28° On/Off Black +
3300 24.8 650 90 4000K Efficient Cool White 37° On/Off Black +
2200 14.8 400 90 4000K Efficient Cool White 15° On/Off White +
2150 14.8 400 90 4000K Efficient Cool White 28° On/Off White +
2100 14.8 400 90 4000K Efficient Cool White 37° On/Off White +
2200 14.8 400 90 4000K Efficient Cool White 15° On/Off Black +
2150 14.8 400 90 4000K Efficient Cool White 28° On/Off Black +
2100 14.8 400 90 4000K Efficient Cool White 37° On/Off Black +
1700 11.0 300 90 4000K Efficient Cool White 15° On/Off White +
1650 11.0 300 90 4000K Efficient Cool White 28° On/Off White +
1600 11.0 300 90 4000K Efficient Cool White 37° On/Off White +
1700 11.0 300 90 4000K Efficient Cool White 15° On/Off Black +
1650 11.0 300 90 4000K Efficient Cool White 28° On/Off Black +
1600 11.0 300 90 4000K Efficient Cool White 37° On/Off Black +
5150 42.0 1050 90 4000K Efficient Cool White 15° On/Off White +
5000 42.0 1050 90 4000K Efficient Cool White 28° On/Off White +
4950 42.0 1050 90 4000K Efficient Cool White 37° On/Off White +
5150 42.0 1050 90 4000K Efficient Cool White 15° On/Off Black +
5000 42.0 1050 90 4000K Efficient Cool White 28° On/Off Black +
4950 42.0 1050 90 4000K Efficient Cool White 37° On/Off Black +
4350 33.2 850 90 4000K Efficient Cool White 15° On/Off White +
4200 33.2 850 90 4000K Efficient Cool White 28° On/Off White +
4150 33.2 850 90 4000K Efficient Cool White 37° On/Off White +
4350 33.2 850 90 4000K Efficient Cool White 15° On/Off Black +
4200 33.2 850 90 4000K Efficient Cool White 28° On/Off Black +
4150 33.2 850 90 4000K Efficient Cool White 37° On/Off Black +
3450 24.8 650 90 4000K Efficient Cool White 15° On/Off White +
3350 24.8 650 90 4000K Efficient Cool White 28° On/Off White +
3300 24.8 650 90 4000K Efficient Cool White 37° On/Off White +
3350 24.8 650 90 3500K B.BBL Efficient White 15° On/Off Black +
3250 24.8 650 90 3500K B.BBL Efficient White 28° On/Off Black +
3200 24.8 650 90 3500K B.BBL Efficient White 37° On/Off Black +
2150 14.8 400 90 3500K B.BBL Efficient White 15° On/Off White +
2100 14.8 400 90 3500K B.BBL Efficient White 28° On/Off White +
2050 14.8 400 90 3500K B.BBL Efficient White 37° On/Off White +
2150 14.8 400 90 3500K B.BBL Efficient White 15° On/Off Black +
2100 14.8 400 90 3500K B.BBL Efficient White 28° On/Off Black +
2050 14.8 400 90 3500K B.BBL Efficient White 37° On/Off Black +
1650 11.0 300 90 3500K B.BBL Efficient White 15° On/Off White +
1600 11.0 300 90 3500K B.BBL Efficient White 28° On/Off White +
1550 11.0 300 90 3500K B.BBL Efficient White 37° On/Off White +
1650 11.0 300 90 3500K B.BBL Efficient White 15° On/Off Black +
1600 11.0 300 90 3500K B.BBL Efficient White 28° On/Off Black +
1550 11.0 300 90 3500K B.BBL Efficient White 37° On/Off Black +
5050 42.0 1050 90 3500K B.BBL Efficient White 15° On/Off White +
4900 42.0 1050 90 3500K B.BBL Efficient White 28° On/Off White +
4800 42.0 1050 90 3500K B.BBL Efficient White 37° On/Off White +
5050 42.0 1050 90 3500K B.BBL Efficient White 15° On/Off Black +
4900 42.0 1050 90 3500K B.BBL Efficient White 28° On/Off Black +
4800 42.0 1050 90 3500K B.BBL Efficient White 37° On/Off Black +
4250 33.2 850 90 3500K B.BBL Efficient White 15° On/Off White +
4100 33.2 850 90 3500K B.BBL Efficient White 28° On/Off White +
4050 33.2 850 90 3500K B.BBL Efficient White 37° On/Off White +
4250 33.2 850 90 3500K B.BBL Efficient White 15° On/Off Black +
4100 33.2 850 90 3500K B.BBL Efficient White 28° On/Off Black +
4050 33.2 850 90 3500K B.BBL Efficient White 37° On/Off Black +
3350 24.8 650 90 3500K B.BBL Efficient White 15° On/Off White +
3250 24.8 650 90 3500K B.BBL Efficient White 28° On/Off White +
3200 24.8 650 90 3500K B.BBL Efficient White 37° On/Off White +
3300 24.8 650 90 3000K B.BBL Efficient White 15° On/Off Black +
3200 24.8 650 90 3000K B.BBL Efficient White 28° On/Off Black +
3150 24.8 650 90 3000K B.BBL Efficient White 37° On/Off Black +
2100 14.8 400 90 3000K B.BBL Efficient White 15° On/Off White +
2050 14.8 400 90 3000K B.BBL Efficient White 28° On/Off White +
2000 14.8 400 90 3000K B.BBL Efficient White 37° On/Off White +
2100 14.8 400 90 3000K B.BBL Efficient White 15° On/Off Black +
2050 14.8 400 90 3000K B.BBL Efficient White 28° On/Off Black +
2000 14.8 400 90 3000K B.BBL Efficient White 37° On/Off Black +
1600 11.0 300 90 3000K B.BBL Efficient White 15° On/Off White +
1550 11.0 300 90 3000K B.BBL Efficient White 28° On/Off White +
1500 11.0 300 90 3000K B.BBL Efficient White 37° On/Off White +
1600 11.0 300 90 3000K B.BBL Efficient White 15° On/Off Black +
1550 11.0 300 90 3000K B.BBL Efficient White 28° On/Off Black +
1500 11.0 300 90 3000K B.BBL Efficient White 37° On/Off Black +
4900 42.0 1050 90 3000K B.BBL Efficient White 15° On/Off White +
4750 42.0 1050 90 3000K B.BBL Efficient White 28° On/Off White +
4700 42.0 1050 90 3000K B.BBL Efficient White 37° On/Off White +
4900 42.0 1050 90 3000K B.BBL Efficient White 15° On/Off Black +
4750 42.0 1050 90 3000K B.BBL Efficient White 28° On/Off Black +
4700 42.0 1050 90 3000K B.BBL Efficient White 37° On/Off Black +
4150 33.2 850 90 3000K B.BBL Efficient White 15° On/Off White +
4000 33.2 850 90 3000K B.BBL Efficient White 28° On/Off White +
3950 33.2 850 90 3000K B.BBL Efficient White 37° On/Off White +
4150 33.2 850 90 3000K B.BBL Efficient White 15° On/Off Black +
4000 33.2 850 90 3000K B.BBL Efficient White 28° On/Off Black +
3950 33.2 850 90 3000K B.BBL Efficient White 37° On/Off Black +
3300 24.8 650 90 3000K B.BBL Efficient White 15° On/Off White +
3200 24.8 650 90 3000K B.BBL Efficient White 28° On/Off White +
3150 24.8 650 90 3000K B.BBL Efficient White 37° On/Off White +
Download pdf
